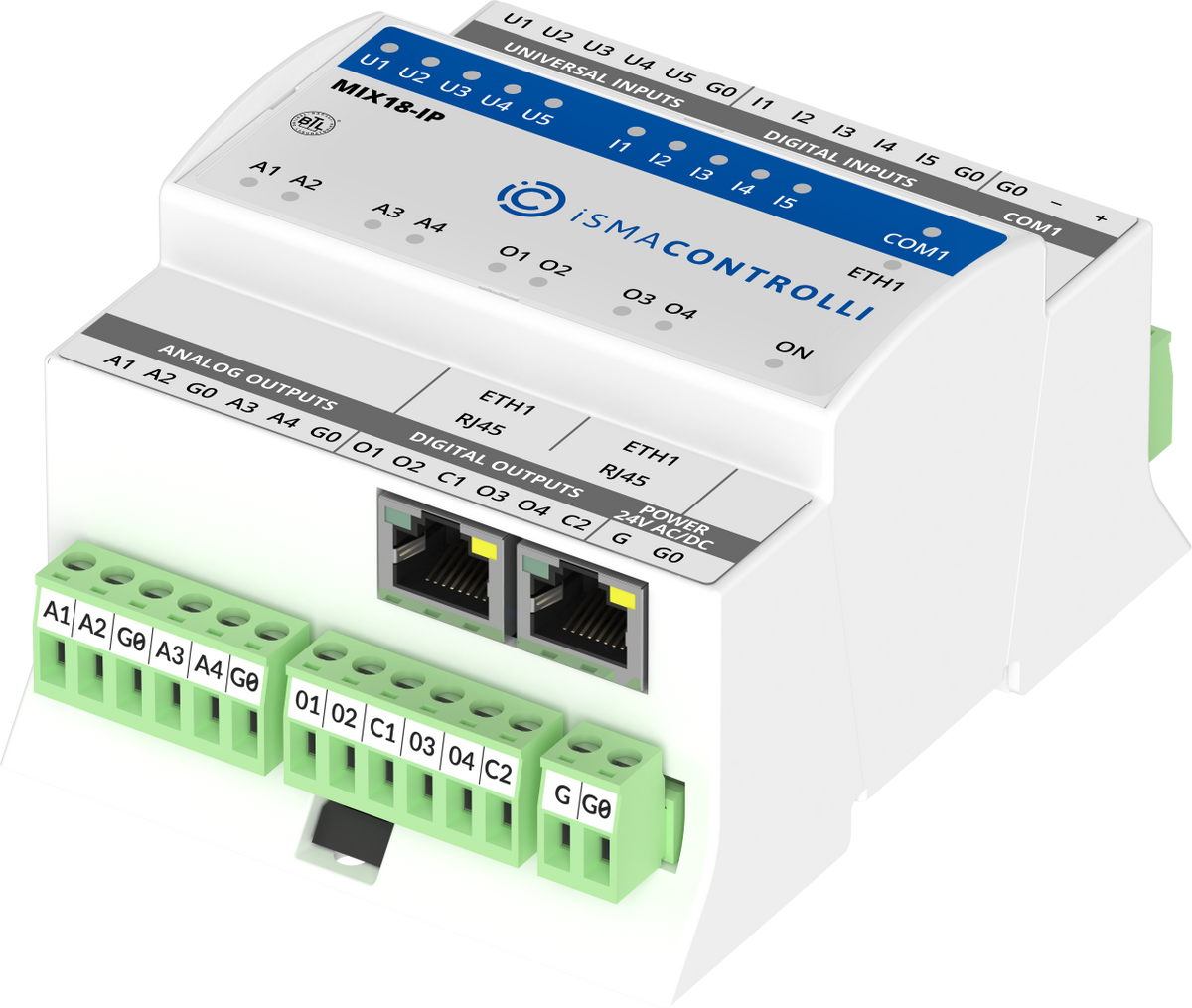

iSMA iSMA-B-MIX18-IP 5 Digital Inputs, 5 Universal Inputs, 4 Analogue Outputs And 4 Digital Outputs – IP I/O Module
iSMA iSMA-B-MIX18-IP 5 Digital Inputs, 5 Universal Inputs, 4 Analogue Outputs And 4 Digital Outputs – IP I/O Module
The iSMA-B-MIX18-IP is a multiprotocol building automation I/O module providing 5 digital inputs, 5 universal inputs, 4 analogue outputs and 4 digital outputs. Designed for distributed control, BMS integration and compatible utility metering systems, this IP-enabled module connects field signals to supervisory controllers using BACnet IP / Modbus TCP/IP.
iSMA-B-MIX18-IP – Technical Specifications
- I/O configuration: 18 I/O channels: 5 DI, 5 UI, 4 AO (0–10 V) and 4 DO
- Communication: BACnet IP / Modbus TCP/IP
- Interface: Ethernet IP
- Power supply: 24 V AC/DC ±20%
- Mounting: DIN rail
- Enclosure protection: IP20 (indoor control panel installation)
- Operating temperature: -10°C to +50°C
- Manufacturer: iSMA CONTROLLI
- Model: iSMA-B-MIX18-IP
Applications
Suitable for building management systems, distributed I/O expansion, energy management and monitoring of compatible field equipment. Check field-device electrical characteristics and input/output configuration before commissioning.
Installation and Integration
Install within a suitable control enclosure and connect to a compatible 24 V AC/DC supply. Select the correct communication protocol and network settings for your controller. Verify wiring, channel capabilities and protocol compatibility against the current manufacturer documentation before installation.
