Engelmann SensoStar U Heat Meter. 3/4" BSP qp 2.5m3/hr. M-Bus.
Engelmann SensoStar U Heat Meter. 3/4" BSP qp 2.5m3/hr. M-Bus.
The Engelmann SensoStar U Ultrasonic Heat Meter is a high-accuracy thermal energy meter designed for reliable measurement of heat consumption in residential, commercial and building-services applications. Using proven ultrasonic flow measurement technology with no moving parts, the SensoStar U provides excellent long-term stability, low pressure loss and dependable operation.
Designed for modern heating and energy-monitoring systems, the Engelmann SensoStar U heat meter combines precise flow measurement with accurate temperature sensing and energy calculation in a compact, robust unit. A clear digital display provides easy access to consumption and operating data, while communication options allow integration with remote meter-reading and building management systems.
The SensoStar U is an excellent choice for heat metering, energy monitoring, landlord billing, apartment metering and commercial heating systems where accurate and reliable thermal energy measurement is required.
Class 2 MID approved to EN1434, RHI Compliant.
- 3/4" BSP Union Connection (DN20).
- 1" BSP Direct Meter Body Connection.
- 1.5m integrated temperature sensors + M10 x 1/2" BSP bush.
- Nominal flow qp 2.5 m3/hr.
- 130mm length. PN16/25.
- MBus output.
- Lithium battery power supply.
- MID approved to EN1434. RHI compliant. Calibration certificate available.
- Supplied with unions / tails.
- Return / Outlet pipe install (Flow / Inlet available on request).
If you prefer to receive a quotation or looking to purchase in quantity please contact us with your enquiry.

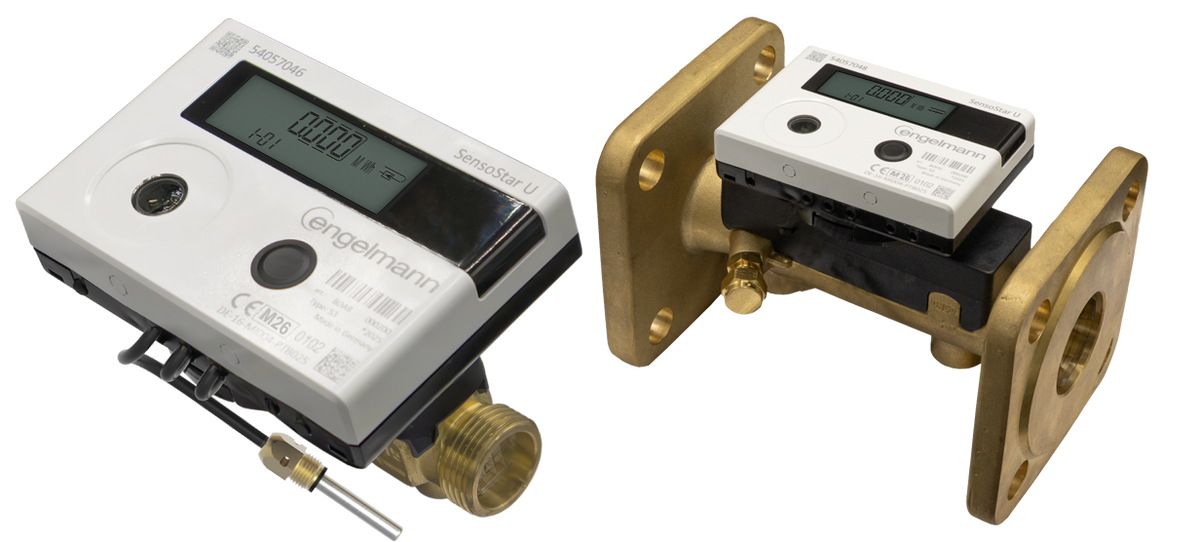

Product Image Notice: The product image shown is for illustrative purposes only. The actual meter supplied will correspond to the connection sizes specified above and may differ in size, proportions or appearance from the image displayed.
