Landis+Gyr - T230 Ultraheat Heat Energy Meters
The Landis+Gyr ULTRAHEAT T230 is a compact ultrasonic thermal energy meter designed for residential, apartment, local heating and building-services applications. It combines accurate low-flow measurement, flexible installation and intelligent measurement functions in a compact meter platform suitable for heating and cooling applications.

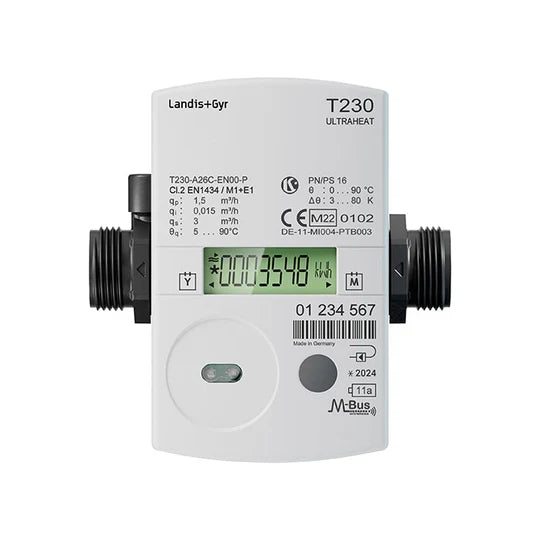

Landis+Gyr ULTRAHEAT T230 Ultrasonic Energy Meter
Compact ultrasonic energy metering for residential and light commercial applications where installation flexibility, accuracy and long-term reliability are important.
The Landis+Gyr ULTRAHEAT T230 combines established ultrasonic metering technology with a compact design developed specifically for individual consumption measurement.
It is particularly well suited to apartments, local heating systems and building-services installations where available space may be restricted but accurate thermal energy measurement is still required.
The meter uses a composite measuring unit with no moving mechanical measuring parts in the flow channel. This provides excellent long-term stability and helps reduce sensitivity to deposits and normal wear.
ULTRAHEAT T230 at a Glance
- Measurement technology: Ultrasonic
- Applications: Heating and cooling energy measurement
- Approval: MID Class 2
- Temperature range: 5–105°C
- Construction: Composite measuring unit with no moving parts in the measuring channel
- Calculator: Flat, rotatable and detachable
- Low-flow performance: Designed to measure very small flow rates accurately
- Data storage: Up to 24 months
- Installation: No straight pipe lengths or flow straighteners required
- Typical use: Apartments, residential developments, local heating and building-services applications
Compact & Flexible Installation
The T230 has been designed specifically for installations where space is limited. Its compact dimensions and flexible mounting options allow it to be fitted in locations such as narrow meter cupboards and restricted service areas.
The calculator is rotatable and detachable, allowing the display to be positioned for convenient reading even where the flow sensor itself must be installed in an awkward or confined location.
Proven Ultrasonic Measurement Technology
Landis+Gyr has extensive experience with ultrasonic heat-meter technology in residential and district-heating applications. The T230 builds on this established measuring principle in a compact meter designed for modern installations.
With no conventional moving measuring parts in the flow channel, the meter is designed for stable long-term performance and reduced sensitivity to mechanical wear.
DuraSurface™ Measuring Stability
The T230 measuring unit incorporates Landis+Gyr's DuraSurface™ internal profile, developed to provide reliable and stable measurement performance over time.
The design helps reduce sensitivity to deposits and contamination within the measuring channel, supporting consistent accuracy and dependable long-term operation.
Intelligent Measurement Functions
The T230 includes a range of software functions designed to improve measurement accuracy, simplify data handling and provide useful historical information.
- Adaptive measurement
- Temperature compensation
- Manual parameterisation
- Statistical values
- Monthly consumption values
- Configurable due-date values
- Data storage for up to 24 months
- Two monthly set dates
Straightforward Installation
The T230 is designed to simplify installation and commissioning. Its compact size and detachable calculator make it particularly useful where access is restricted.
No straight lengths of pipe or additional flow straighteners are required, helping reduce the installation space and pipework modifications needed around the meter.
Typical Applications
- Residential heat metering
- Apartment and flat energy sub-metering
- Communal heating systems
- Local heating networks
- Building-services installations
- Cooling energy measurement
- Restricted meter cupboards
- Systems with variable or low flow rates
- Automatic meter-reading applications
Why Choose the ULTRAHEAT T230?
The T230 is particularly well suited to applications where a compact, accurate and installation-friendly ultrasonic energy meter is required. Its detachable calculator, excellent low-flow measurement, long-term measuring stability and intelligent software functions make it a strong choice for residential and apartment energy-metering applications.
Need Help Selecting the Correct T230?
Contact Stockshed Metering with your pipe size, expected flow rate, heating or cooling application and communication requirements and we can help identify the most suitable Landis+Gyr T230 configuration for your installation.
