The Engelmann FlowStar U is a high-accuracy ultrasonic flow sensor designed for commercial, industrial and district heating energy-metering applications. Available in sizes from DN50 to DN300, the FlowStar U provides reliable measurement across a wide range of system capacities, with nominal flow rates from Qp 15 m³/h to Qp 600 m³/h.

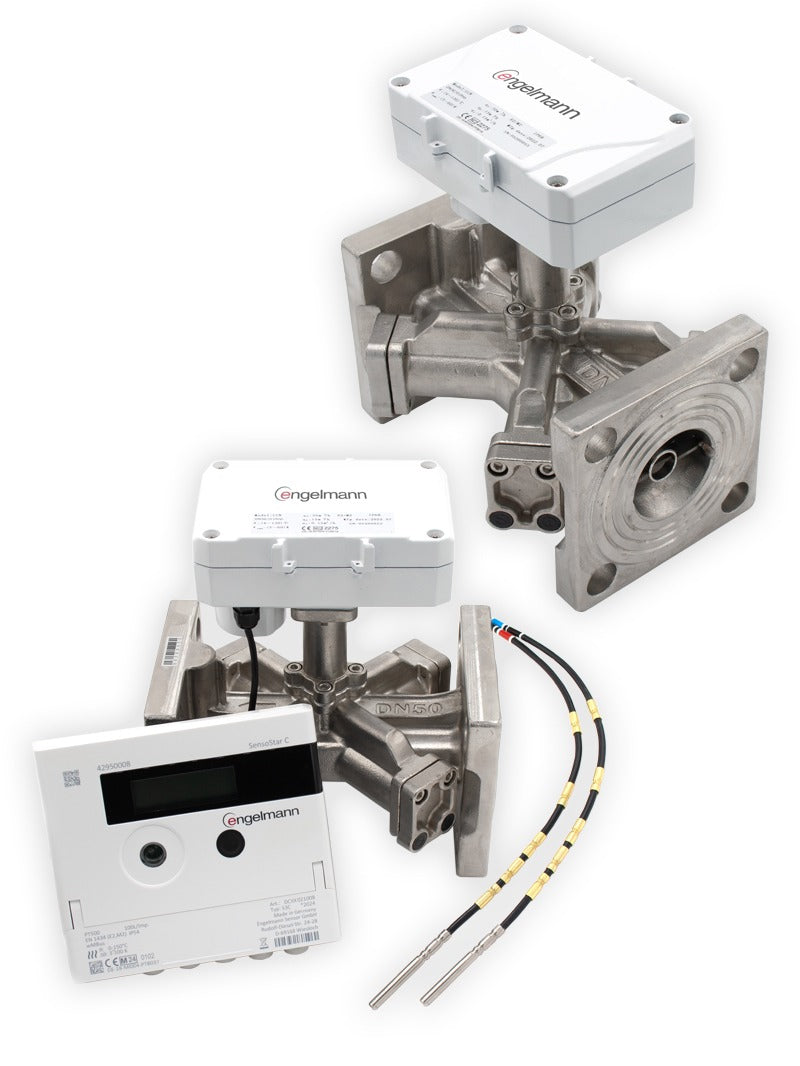

Engelmann FlowStar U Ultrasonic Flow Sensor
High-performance large-bore ultrasonic flow measurement for commercial, industrial and district heating applications.
Technical Overview
The FlowStar U uses dual-channel ultrasonic measurement technology to provide accurate and stable flow measurement without moving mechanical components. The absence of moving parts helps reduce wear and supports dependable long-term operation in demanding plant-room and energy-metering environments.
The range is available from DN50 through to DN300 and is particularly well suited to larger heating, cooling and thermal energy systems where compact heat meters are not suitable.
Key Features
- Dual-channel ultrasonic flow measurement technology
- Available in sizes from DN50 to DN300
- Nominal flow rates from Qp 15 m³/h to Qp 600 m³/h
- MID Accuracy Class 2
- No moving mechanical measuring components
- Suitable for horizontal, vertical and overhead installation
- Can be configured for installation in flow or return pipework
- Medium temperature range from 1°C to 130°C
- Temporary operation up to 150°C for a maximum of 2,000 hours
- Available in PN16 and PN25 pressure ratings
- IP68 protection
- 10 metre connection cable
- Battery-powered operation with service life of up to 12 years
- Pulse output in accordance with EN 1434-2
- Designed for water-based heating and thermal energy systems
Large-Bore Ultrasonic Energy Metering
The Engelmann FlowStar U extends ultrasonic metering technology into larger commercial and industrial pipe sizes. Its broad range of flow capacities makes it suitable for applications including:
- Commercial buildings
- Apartment and residential developments
- Plant rooms and energy centres
- District heating networks
- Industrial heating systems
- Large heating and cooling circuits
- Building energy monitoring and billing systems
With no mechanical measuring components in the flow path, ultrasonic measurement offers excellent long-term stability while maintaining accurate measurement across a broad flow range.
Complete Heat Meter Solution
The FlowStar U is designed primarily as the volume measuring component of a combined heat or thermal energy meter. When used together with an Engelmann SensoStar C energy calculator and a matched pair of temperature sensors, the complete system calculates thermal energy consumption from the measured water volume and temperature differential.
This modular configuration allows the flow sensor, calculator and temperature sensors to be selected independently to suit the application, making the FlowStar U particularly suitable for larger installations where a compact heat meter is not practical.
FlowStar U Sizes & Flow Rates
| Size | Nominal Flow Qp | Maximum Flow Qs |
|---|---|---|
| DN50 | 15 m³/h | 30 m³/h |
| DN65 | 25 m³/h | 50 m³/h |
| DN80 | 40 m³/h | 80 m³/h |
| DN100 | 60 m³/h | 120 m³/h |
| DN125 | 100 m³/h | 200 m³/h |
| DN150 | 150 m³/h | 300 m³/h |
| DN200 | 250 m³/h | 500 m³/h |
| DN250 | 400 m³/h | 800 m³/h |
| DN300 | 600 m³/h | 1,200 m³/h |
Available sizes: DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250 and DN300.
```
