ELECTO SJ
The Maddalena ElecTo SJ is a compact electronic single-jet water meter designed for residential and sub-metering applications. Available for cold and hot water in DN15 and DN20 sizes, it combines reliable mechanical measurement with a digital electronic register, integrated wireless M-Bus communications and intelligent operating information.

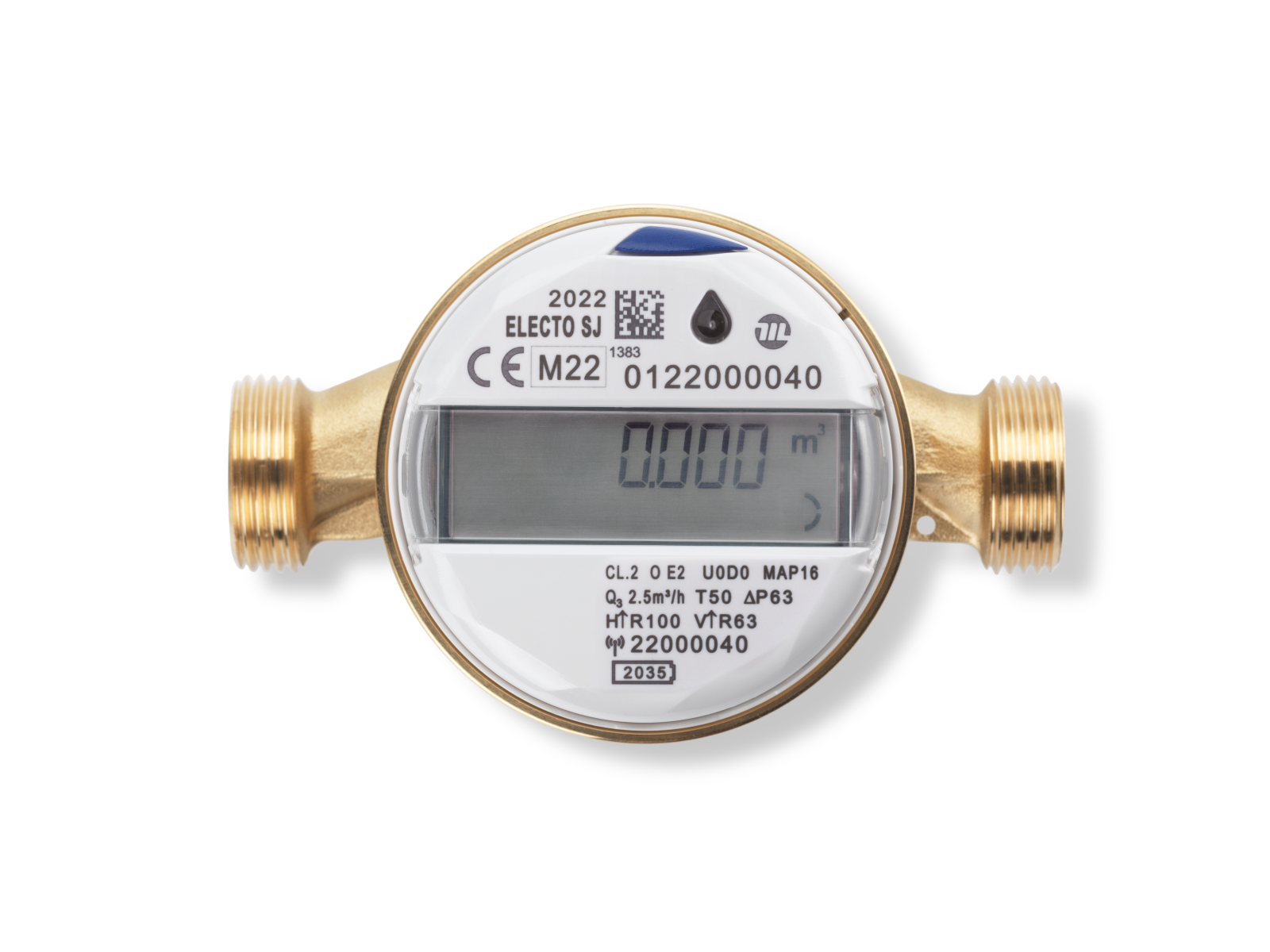

Maddalena ElecTo SJ Digital Single-Jet Water Meter
Smart residential water metering with digital display, integrated radio communications and long-term battery operation.
The Maddalena ElecTo SJ is an electronic single-jet water meter designed specifically for residential indoor applications where accurate measurement and remote meter reading are required.
Unlike a conventional mechanical register, the ElecTo SJ uses an electronic radio register with a large digital LCD display. This provides clear local consumption information together with additional operating data for users, landlords, building managers and meter-reading operators.
Integrated wireless M-Bus / OMS radio allows the meter to be read remotely using mobile or fixed reading systems, making it particularly suitable for apartment developments, residential sub-metering and other applications where regular physical access to the meter is inconvenient.
ElecTo SJ at a Glance
- Meter technology: Electronic single-jet
- Sizes: DN15 and DN20
- Applications: Cold and hot water
- Metrological performance: Up to R160
- Approvals: WRAS and MID
- Display: Large digital LCD
- Register: Rotatable through 360°
- Protection rating: IP68
- Communication: Integrated wireless M-Bus / OMS radio
- Battery: Lithium battery with a minimum 13-year life
- Magnetic protection: High resistance to external magnetic fields
- Applications: Residential, apartment and sub-metering installations
Cold & Hot Water Versions
The ElecTo SJ is available for both cold and hot water applications, allowing the same meter family to be used across a wide range of residential installations.
DN15 and DN20 versions cover the most common domestic and apartment water-metering applications, with the appropriate temperature version selected according to the service conditions.
Integrated Wireless Meter Reading
Integrated wireless M-Bus and OMS radio communications allow consumption data to be collected remotely using compatible mobile or fixed reading systems.
This makes the ElecTo SJ particularly suitable for apartment developments and multi-meter installations where individual meters may be located inside properties, cupboards or other areas that are difficult to access regularly.
Digital Register & Intelligent Monitoring
The electronic register provides more than a simple consumption reading. It can detect and report a range of operating and fault conditions, helping identify abnormal usage or installation issues.
- Fraud or tampering indication
- Leak or water-loss detection
- Excessive consumption
- Reverse flow
- Blocked meter indication
- Reversed meter installation
Long-Life Battery & IP68 Protection
A long-life lithium battery provides a minimum operating life of approximately 13 years, helping reduce maintenance requirements on long-term metering installations.
The electronic register is rated to IP68 and can be rotated through 360°, allowing the display to be positioned for convenient reading after installation.
Typical Applications
- Residential water metering
- Apartment and flat sub-metering
- Landlord and tenant billing
- Housing developments
- Cold-water metering
- Hot-water metering
- Remote and automatic meter-reading systems
- Wireless M-Bus / OMS metering networks
Why Choose the ElecTo SJ?
The ElecTo SJ combines proven single-jet water-metering technology with a modern electronic register, integrated wireless communications, intelligent monitoring and long battery life. It is an excellent choice for residential and apartment applications where accurate measurement and convenient remote reading are required.
Technical Documents
Need Help Selecting the Correct ElecTo SJ?
Contact Stockshed Metering with your pipe size, water temperature and remote-reading requirements and we can help identify the most suitable ElecTo SJ configuration for your application.
